The Ingress NGINX Migration Just Got Easier: 119 Annotations, 3 Targets, Impact Ratings

A few months ago, I built ing-switch and wrote about it on kubesimplify. The response was incredible -- people loved the annotation mapping and the visual dashboard.

Since then, ingress-nginx was officially archived (March 24, 2026). March 31 is end of life -- zero security patches after that date.

Based on community feedback from KubeCon, this is the biggest update yet: 119 annotations (up from 50), Gateway API with Traefik as the provider (the #1 request), and impact ratings on every annotation so you know exactly what matters.

This post walks through a complete end-to-end migration on a vind cluster with actual command outputs.

Why You Need to Migrate Now

• Nov 11, 2025: Kubernetes SIG Network announces ingress-nginx retirement

• Jan 29, 2026: Joint statement from Kubernetes Steering + Security Response Committees urging immediate migration

• Mar 24, 2026: GitHub repository archived (read-only)

• Mar 31, 2026: End of life -- zero support from this date

Chainguard maintains a fork for CVE-level fixes only -- no features, no community PRs, no pre-built images. You're on your own.

The Three Migration Paths

Target	Best For	What Changes
Traefik v3	Fastest migration, lowest friction	Keep Ingress API, swap annotations to Middleware CRDs
Gateway API (Envoy)	Future-proof standard	Replace Ingresses with HTTPRoutes, Envoy policies
Gateway API (Traefik)	Rancher / k3s users	Standard HTTPRoutes + Gateway resources, with Traefik as the controller implementation. Advanced features (rate limiting, auth, IP filtering) use Traefik Middleware CRDs as extension policies.

The Annotation Problem

The real complexity isn't swapping controllers -- it's the annotations. A typical production Ingress has 10-15 NGINX annotations for SSL, auth, rate limiting, CORS, session affinity, and more.

ing-switch maps 119 annotations with impact ratings:

	Traefik	Gateway API
Supported (direct equivalent)	35	39
Partial (needs minor adjustment)	48	25
Unsupported (with impact notes)	42	62

Every unsupported annotation gets an impact rating: NONE (safe to ignore), LOW (better defaults), MEDIUM (needs workaround), or VARIES (review your snippets). Most teams discover 70%+ of "unsupported" annotations are safe to ignore.

End-to-End Demo: vCluster + ing-switch

Let's walk through a complete migration on a real cluster. We'll use vCluster to spin up a Kubernetes cluster in Docker, deploy 3 services with NGINX annotations, and migrate them to Gateway API with Traefik.

Step 1: Create a Cluster

vcluster create demo --driver docker

Output:

info  Using vCluster driver 'docker' to create your virtual clusters
info  Ensuring environment for vCluster demo...
done  Created network vcluster.demo
info  Starting vCluster standalone demo
done  Successfully created virtual cluster demo
info  Waiting for vCluster to become ready...
done  vCluster is ready
done  Switched active kube context to vcluster-docker_demo

Verify:

kubectl get namespaces

NAME                 STATUS   AGE
default              Active   16s
kube-flannel         Active   6s
kube-node-lease      Active   16s
kube-public          Active   16s
kube-system          Active   16s
local-path-storage   Active   6s

Step 2: Install Ingress NGINX

helm repo add ingress-nginx https://kubernetes.github.io/ingress-nginx
helm install ingress-nginx ingress-nginx/ingress-nginx \
  --namespace ingress-nginx \
  --create-namespace \
  --set controller.service.type=ClusterIP \
  --set controller.admissionWebhooks.enabled=false \
  --wait --timeout 120s

NAME: ingress-nginx
LAST DEPLOYED: Sun Mar 29 11:15:57 2026
NAMESPACE: ingress-nginx
STATUS: deployed

kubectl get pods -n ingress-nginx

NAME                                        READY   STATUS    RESTARTS   AGE
ingress-nginx-controller-5486dbd97f-vc9wv   1/1     Running   0          54s

Step 3: Deploy 3 Apps with NGINX Annotations

We deploy three services, each with different annotation patterns:

App 1 -- Basic web app (SSL redirect + timeouts):

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: web-app
  namespace: demo
  annotations:
    nginx.ingress.kubernetes.io/ssl-redirect: "true"
    nginx.ingress.kubernetes.io/proxy-read-timeout: "60"
    nginx.ingress.kubernetes.io/proxy-connect-timeout: "10"
spec:
  ingressClassName: nginx
  rules:
  - host: web.example.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: web-app
            port:
              number: 80

App 2 -- API with CORS + rate limiting (10 annotations):

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: api-cors
  namespace: demo
  annotations:
    nginx.ingress.kubernetes.io/force-ssl-redirect: "true"
    nginx.ingress.kubernetes.io/enable-cors: "true"
    nginx.ingress.kubernetes.io/cors-allow-origin: "https://app.example.com,https://admin.example.com"
    nginx.ingress.kubernetes.io/cors-allow-methods: "GET, POST, PUT, DELETE, OPTIONS"
    nginx.ingress.kubernetes.io/cors-allow-headers: "Content-Type, Authorization, X-API-Key"
    nginx.ingress.kubernetes.io/cors-allow-credentials: "true"
    nginx.ingress.kubernetes.io/cors-max-age: "86400"
    nginx.ingress.kubernetes.io/limit-rps: "50"
    nginx.ingress.kubernetes.io/limit-burst-multiplier: "3"
    nginx.ingress.kubernetes.io/proxy-body-size: "5m"
spec:
  ingressClassName: nginx
  rules:
  - host: api.example.com
    http:
      paths:
      - path: /v1
        pathType: Prefix
        backend:
          service:
            name: api-service
            port:
              number: 80

App 3 -- Auth-protected dashboard (external auth + IP allowlist + session affinity):

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: dashboard
  namespace: demo
  annotations:
    nginx.ingress.kubernetes.io/ssl-redirect: "true"
    nginx.ingress.kubernetes.io/auth-url: "https://auth.example.com/verify"
    nginx.ingress.kubernetes.io/auth-response-headers: "X-User-ID,X-User-Email"
    nginx.ingress.kubernetes.io/whitelist-source-range: "10.0.0.0/8,172.16.0.0/12"
    nginx.ingress.kubernetes.io/affinity: "cookie"
    nginx.ingress.kubernetes.io/session-cookie-name: "dashboard-session"
    nginx.ingress.kubernetes.io/session-cookie-max-age: "3600"
spec:
  ingressClassName: nginx
  rules:
  - host: dashboard.example.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: dashboard
            port:
              number: 80

After applying all three:

kubectl get ingress -n demo

NAME        CLASS   HOSTS                   ADDRESS   PORTS   AGE
api-cors    nginx   api.example.com                   80      5s
dashboard   nginx   dashboard.example.com             80      5s
web-app     nginx   web.example.com                   80      5s

kubectl get pods -n demo

NAME                           READY   STATUS    RESTARTS   AGE
api-service-5f99b6d99d-x7vmn   1/1     Running   0          24s
dashboard-9ddbf867-7dbgf       1/1     Running   0          24s
web-app-969c76b7c-7wqw5        1/1     Running   0          24s

3 ingresses, 20 NGINX annotations, 3 services running. Now let's see what ing-switch makes of this.

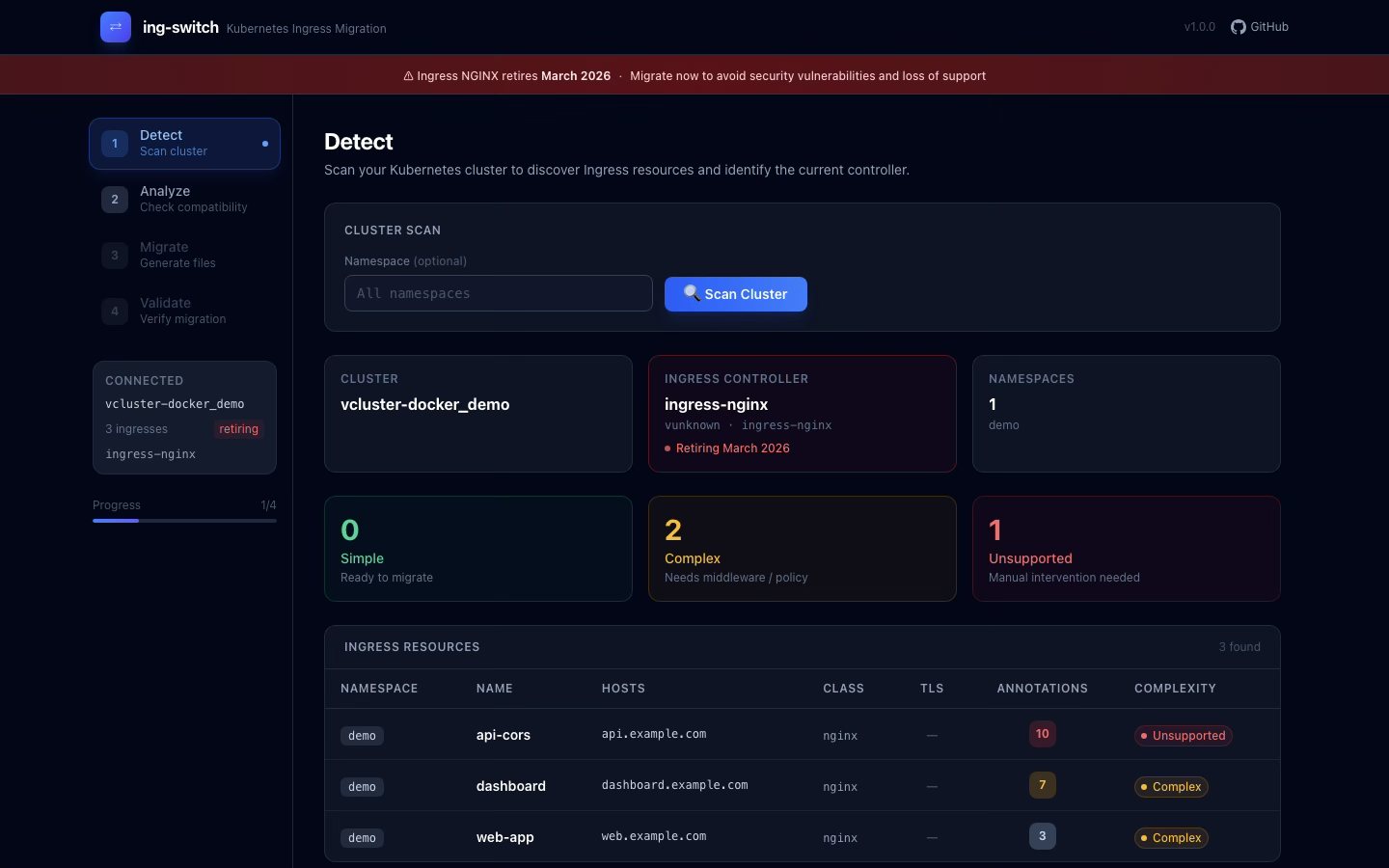

Step 4: Scan the Cluster

ing-switch scan

  ing-switch -- Cluster Scan Results
  Cluster: vcluster-docker_demo

  Ingress Controller Detected
  Type:      ingress-nginx
  Version:   unknown
  Namespace: ingress-nginx

  Found 3 Ingress resource(s)

  NAMESPACE   NAME        HOSTS                   ANNOTATIONS   TLS   COMPLEXITY
  ---------   ----        -----                   -----------   ---   ----------
  demo        api-cors    api.example.com         10            no    unsupported
  demo        dashboard   dashboard.example.com   7             no    complex
  demo        web-app     web.example.com         3             no    complex

ing-switch detected the NGINX controller and found all 3 ingresses with their annotation counts and complexity scores.

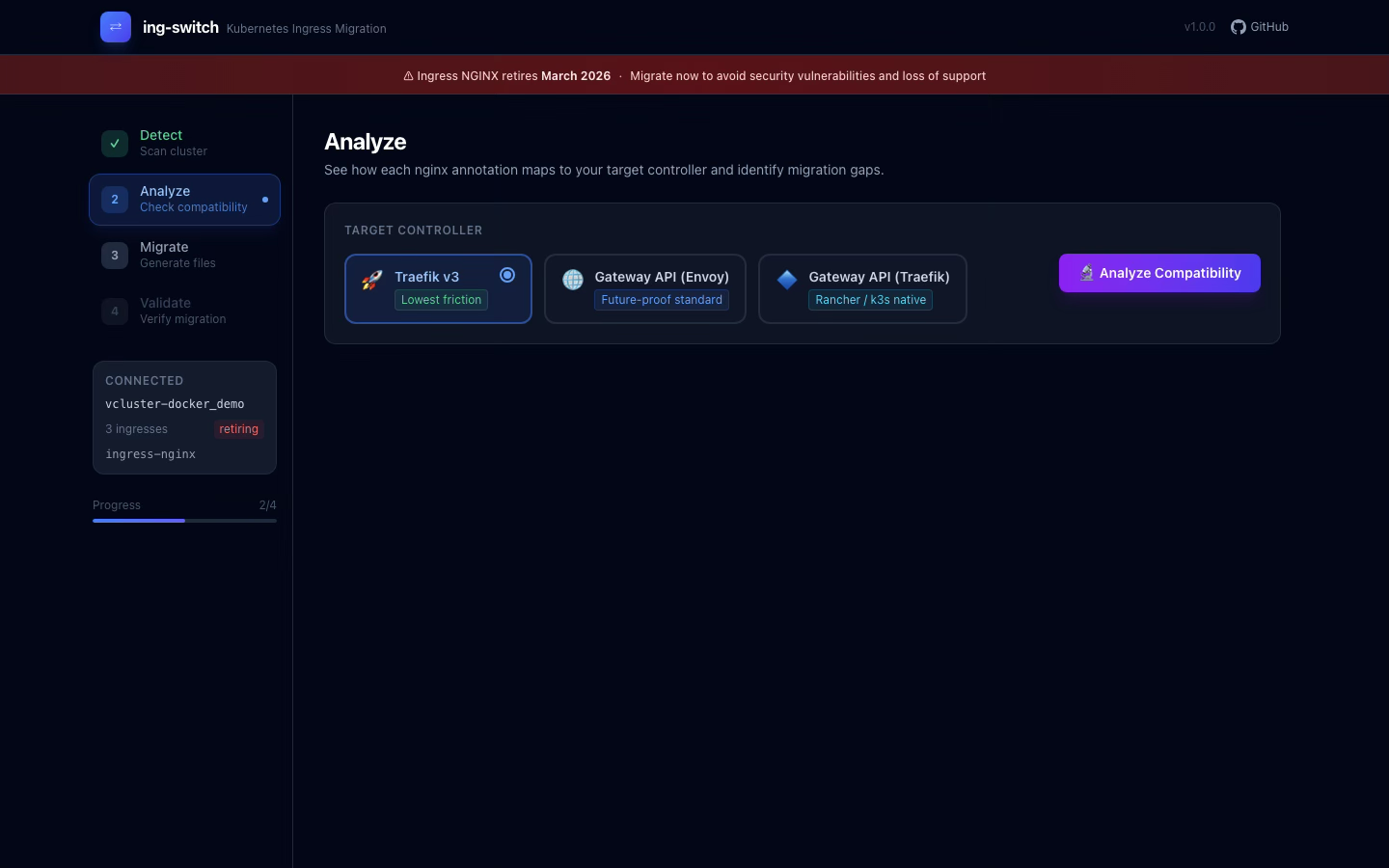

Step 5: Analyze Compatibility

Let's compare all three targets:

Traefik v3:

ing-switch analyze --target traefik

  Summary
  -------
  Total ingresses:      3
  Fully compatible:     1
  Needs workarounds:    2
  Has unsupported:      0

Gateway API (Envoy):

ing-switch analyze --target gateway-api

  Summary
  -------
  Total ingresses:      3
  Fully compatible:     0
  Needs workarounds:    3
  Has unsupported:      0

Gateway API (Traefik):

ing-switch analyze --target gateway-api-traefik

  Summary
  -------
  Total ingresses:      3
  Fully compatible:     0
  Needs workarounds:    3
  Has unsupported:      0

Key insight: Traefik is the highest-compatibility target for this workload (1 fully compatible out of 3). The CORS annotations map directly to Traefik's Headers middleware. For Gateway API, CORS is now also fully supported thanks to the native CORS filter in Gateway API v1.5.

Here's the detailed annotation mapping for the API with CORS:

  demo/api-cors
  -------------
  ANNOTATION               STATUS        TARGET RESOURCE                    NOTES
  enable-cors              [supported]   HTTPRoute (CORS filter)            Native CORS filter (GA in Gateway API v1.5)
  cors-allow-origin        [supported]   HTTPRoute (CORS filter)            allowOrigins in CORS filter
  cors-allow-methods       [supported]   HTTPRoute (CORS filter)            allowMethods in CORS filter
  cors-allow-headers       [supported]   HTTPRoute (CORS filter)            allowHeaders in CORS filter
  cors-allow-credentials   [supported]   HTTPRoute (CORS filter)            allowCredentials in CORS filter
  cors-max-age             [supported]   HTTPRoute (CORS filter)            maxAge in CORS filter
  force-ssl-redirect       [supported]   HTTPRoute (RequestRedirect filter) 301 redirect to HTTPS
  limit-rps                [partial]     BackendTrafficPolicy (RateLimit)   Envoy Gateway BackendTrafficPolicy
  limit-burst-multiplier   [partial]     BackendTrafficPolicy (RateLimit)   Burst configurable but uses tokens
  proxy-body-size          [partial]     BackendTrafficPolicy               requestBuffer.limit

7 out of 10 annotations are fully supported. The 3 "partial" ones work -- they just use a slightly different API.

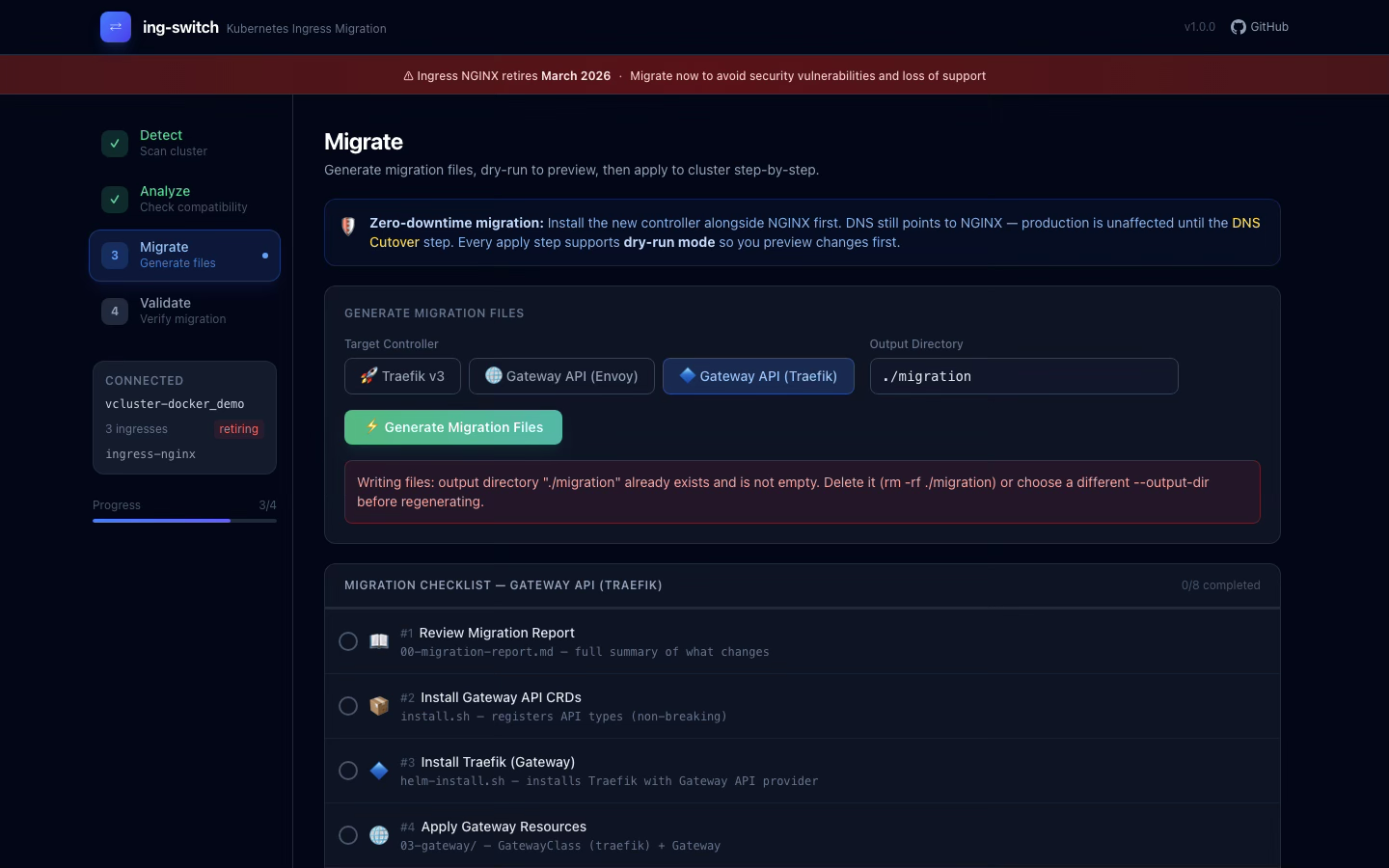

Step 6: Generate Migration Files

ing-switch migrate --target gateway-api-traefik --output-dir ./migration

  ing-switch -- Generating Migration Files
  Target:     gateway-api-traefik
  Output dir: ./migration

  + 00-migration-report.md
  + 01-install-gateway-api-crds/install.sh
  + 02-install-traefik-gateway/helm-install.sh
  + 02-install-traefik-gateway/values.yaml
  + 03-gateway/gatewayclass.yaml
  + 03-gateway/gateway.yaml
  + 04-httproutes/demo-api-cors.yaml
  + 04-httproutes/demo-dashboard.yaml
  + 04-httproutes/demo-web-app.yaml
  + 05-policies/demo-api-cors-ratelimit.yaml
  + 05-policies/demo-dashboard-forwardauth.yaml
  + 05-policies/demo-dashboard-ipallowlist.yaml
  + 06-verify.sh
  + 07-cleanup/remove-nginx.sh
  Generated 13 files in ./migration/

Step 7: Inspect the Generated YAML

GatewayClass -- points to Traefik, not Envoy:

apiVersion: gateway.networking.k8s.io/v1
kind: GatewayClass
metadata:
  name: traefik
spec:
  controllerName: traefik.io/gateway-controller

HTTPRoute with native CORS filter (no more ResponseHeaderModifier hacks):

apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: api-cors
  namespace: demo
spec:
  parentRefs:
  - name: ing-switch-gateway
    namespace: default
  hostnames:
  - "api.example.com"
  rules:
  - matches:
    - path:
        type: PathPrefix
        value: "/v1"
    filters:
    - type: CORS
      cors:
        allowOrigins:
        - type: Exact
          value: "https://app.example.com"
        - type: Exact
          value: "https://admin.example.com"
        allowMethods:
        - "GET"
        - "POST"
        - "PUT"
        - "DELETE"
        - "OPTIONS"
        allowHeaders:
        - "Content-Type"
        - "Authorization"
        - "X-API-Key"
        allowCredentials: true
        maxAge: "86400s"
    backendRefs:
    - name: api-service
      port: 80

Traefik Middleware CRDs (not Envoy-specific policies):

# Rate Limiting
apiVersion: traefik.io/v1alpha1
kind: Middleware
metadata:
  name: demo-api-cors-ratelimit
  namespace: demo
spec:
  rateLimit:
    average: 50
    burst: 3

# ForwardAuth (external authentication)
apiVersion: traefik.io/v1alpha1
kind: Middleware
metadata:
  name: demo-dashboard-forwardauth
  namespace: demo
spec:
  forwardAuth:
    address: "https://auth.example.com/verify"
  authResponseHeaders:
    - "X-User-ID"
    - "X-User-Email"

# IP AllowList
apiVersion: traefik.io/v1alpha1
kind: Middleware
metadata:
  name: demo-dashboard-ipallowlist
  namespace: demo
spec:
  ipAllowList:
    sourceRange:
    - "10.0.0.0/8"
    - "172.16.0.0/12"

Step 8: Review the Migration Report

The migrate command automatically generates 00-migration-report.md in the output directory. Open it to see the full summary:

cat ./migration/00-migration-report.md

# ing-switch Migration Report
**Target Controller:** gateway-api-traefik

## Summary
| Metric | Count |
|--------|-------|
| Total Ingresses | 3 |
| Fully Compatible | 0 |
| Needs Workarounds | 3 |
| Has Unsupported Annotations | 0 |

## demo/api-cors -- Needs workaround
| Annotation | Status | Target Resource | Notes |
|-----------|--------|-----------------|-------|
| enable-cors | OK | HTTPRoute (CORS filter) | Native CORS filter (GA in v1.5) |
| cors-allow-origin | OK | HTTPRoute (CORS filter) | allowOrigins in CORS filter |
| limit-rps | WARN | BackendTrafficPolicy | Envoy Gateway BackendTrafficPolicy |
...

Step 9: Apply (Dry-Run First)

# Install Gateway API CRDs
bash ./migration/01-install-gateway-api-crds/install.sh

# Install Traefik with Gateway API provider
bash ./migration/02-install-traefik-gateway/helm-install.sh

# Dry-run all resources first
kubectl apply -f ./migration/03-gateway/ --dry-run=server
kubectl apply -f ./migration/04-httproutes/ --dry-run=server

# If dry-run passes, apply for real
kubectl apply -f ./migration/03-gateway/
kubectl apply -f ./migration/04-httproutes/
kubectl apply -f ./migration/05-policies/

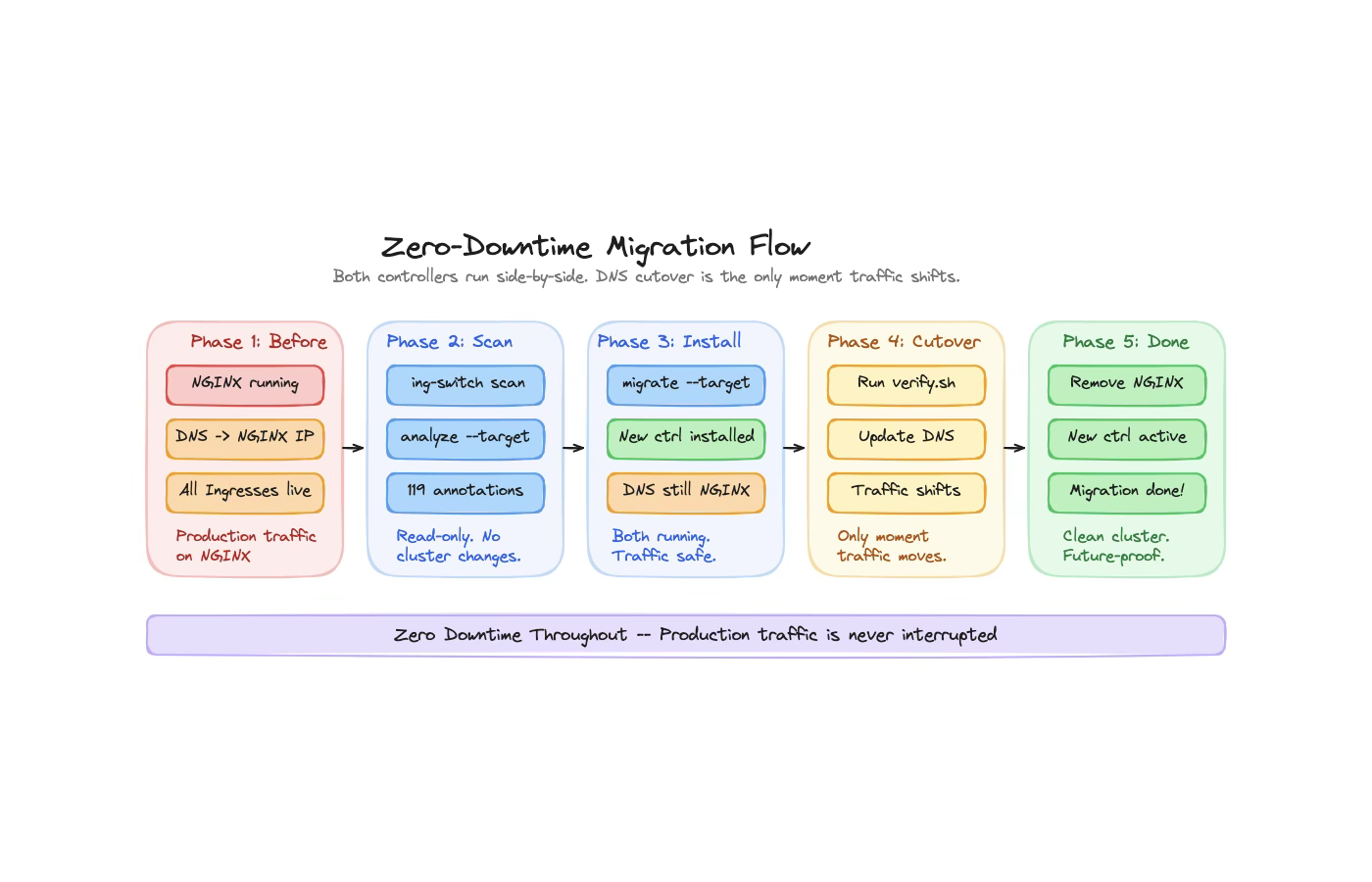

At this point, both NGINX and Traefik are running side by side. DNS still points to NGINX. Production traffic is untouched.

Step 10: Verify and Cutover

# Run the generated verification script
bash ./migration/06-verify.sh

# Once verified, update DNS to Traefik's IP
# Then clean up NGINX
bash ./migration/07-cleanup/remove-nginx.sh

Step 11: Use the Web UI

For teams that prefer a visual workflow:

ing-switch ui
# Opens http://localhost:8080

The dashboard provides four pages:

Detect -- Scan your cluster and see all ingresses with annotation counts and complexity:

Analyze -- Choose between 3 targets and see the full annotation compatibility matrix:

Migrate -- One-click generation with step-by-step checklist and dry-run buttons:

View all generated files inline with syntax highlighting:

See migration gaps with impact ratings and fix instructions:

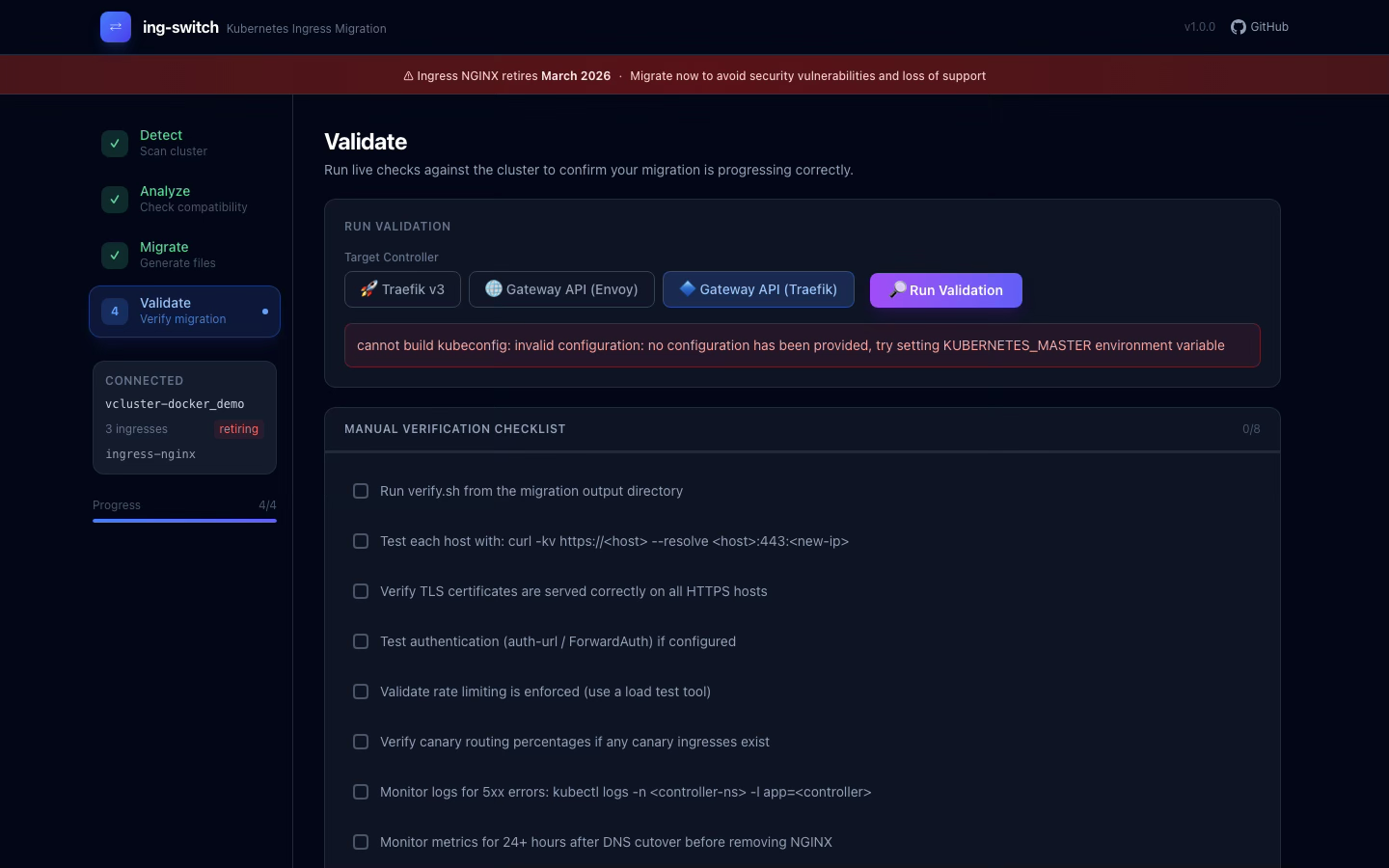

Validate -- Run live cluster checks to confirm your migration phase:

Cleanup

vcluster delete demo --driver docker

done  Successfully deleted virtual cluster demo

What Makes ing-switch Different

Feature	ing-switch	ingress2gateway	Manual
Annotation coverage	119	30+	You count
Traefik Ingress target	Yes	No	--
Gateway API (Traefik)	Yes	No	--
Gateway API (Envoy)	Yes	Yes	--
Impact ratings	Yes	No	No
Web UI	Yes	No	No
Install scripts	Yes	No	No
Verification scripts	Yes	No	No
DNS migration guide	Yes	No	No
Dry-run mode	Yes	No	--

The Ecosystem Is Ready

• Gateway API v1.5 -- CORS filter, TLSRoute, BackendTLSPolicy all GA

• ingress2gateway v1.0 -- Official tool with emitter architecture

• Traefik v3.7 -- Native NGINX annotation provider (80+ annotations)

• Envoy Gateway v1.7 -- XListenerSet, enhanced policies

• cert-manager v1.20 -- Gateway API ListenerSet support

• Kubernetes 1.36 -- Ships April 22, first release post-NGINX archival

The tools exist. The standards are stable. The only thing left is to actually run the migration.

---

Star it, fork it, migrate today: github.com/saiyam1814/ing-switch

ing-switch is open source under the MIT license. PRs welcome.
