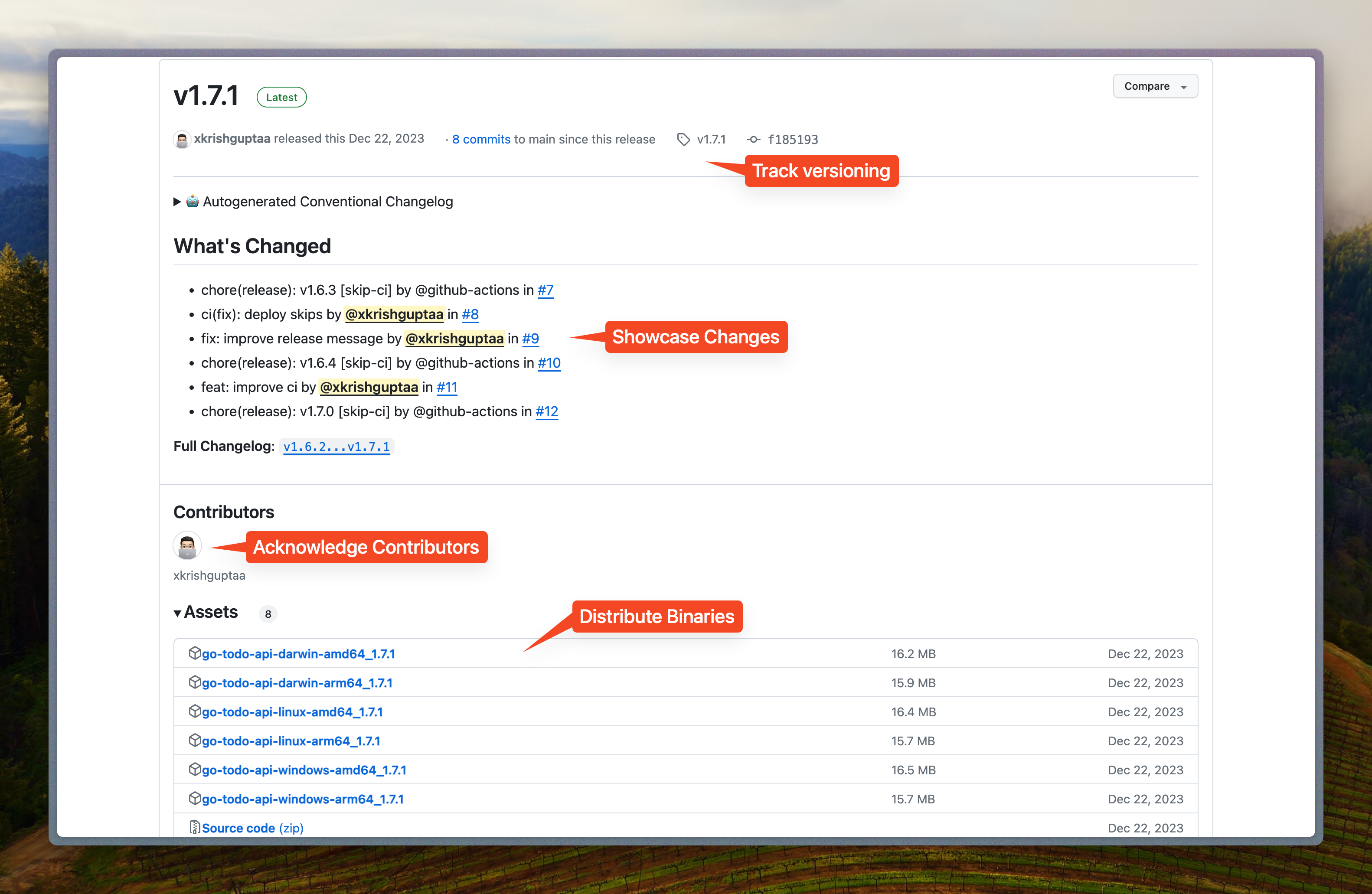

Releases are a very important way to:

  • Track versioning

  • Showcase changes

  • Acknowledge contributors

  • Distribute Binaries

But, who does releases manually? That is boring. True engineers spend 6 hours automating tasks that take 6 minutes! So let's build a CI/CD Pipeline to automate this:

Problems

Let's break this problem down into smaller bits. I need to:

  • Check if my application works so that I don't release any broken code

  • Store the previous version to iterate only forwards

  • Figure out how I want to bump the version (spoiler: we use conventional commits)

  • Showcase all the commits in the release

  • Acknowledge the contributors by using GitHub's release template

  • Upload the binary assets to GitHub in the release

Check if my application works so that I don't release any broken code

Let's create a simple GitHub action that checks if my application is up to standards:

name: CI

on:
  push:
    branches:
      - main
  pull_request:

permissions:
  contents: write
  packages: write
  pull-requests: write

env:
  GO_VERSION: 1.21.3
  APP_NAME: go-todo-api

jobs:
  lint:
    name: Lint
    runs-on: ubuntu-latest

    steps:
      - name: Checkout
        uses: actions/checkout@b4ffde65f46336ab88eb53be808477a3936bae11 # v4
      - name: Setup Go
        uses: actions/setup-go@0c52d547c9bc32b1aa3301fd7a9cb496313a4491 # v5
        with:
          go-version: ${{ env.GO_VERSION }}
      - name: Install Dependencies
        run: go mod download
      - name: Verify Dependencies
        run: go mod verify
      - name: Lint ${{ env.APP_NAME }}
        run: go vet ./...

  build:
    name: Build
    runs-on: ubuntu-latest

    steps:
      - name: Checkout
        uses: actions/checkout@b4ffde65f46336ab88eb53be808477a3936bae11 # v4
      - name: Setup Go
        uses: actions/setup-go@0c52d547c9bc32b1aa3301fd7a9cb496313a4491 # v5
        with:
          go-version: ${{ env.GO_VERSION }}
      - name: Install Dependencies
        run: go mod download
      - name: Verify Dependencies
        run: go mod verify
      - name: Build ${{ env.APP_NAME }}
        run: |
          chmod +x ./scripts/build.sh
          ./scripts/build.sh

  test:
    name: Test
    needs: build
    runs-on: ubuntu-latest

    steps:
      - name: Checkout
        uses: actions/checkout@b4ffde65f46336ab88eb53be808477a3936bae11 # v4
      - name: Setup Go
        uses: actions/setup-go@0c52d547c9bc32b1aa3301fd7a9cb496313a4491 # v5
        with:
          go-version: ${{ env.GO_VERSION }}
      - name: "Warning: No test cases"
        run: echo "Reminder to create test cases"
      - name: Install Dependencies
        run: go mod download
      - name: Verify Dependencies
        run: go mod verify
      - name: Test ${{ env.APP_NAME }}
        run: go test -v ./...

That looks like a lot of stuff, let me break it down:

  • We give the workflow a name: CI

  • Set it to trigger on push to the main branch and pull_request (I know we only release from the pushes, but having CI for preview environments is like a bonus cherry on top)

  • We give it some permissions, we want it to be able to:

    • push (contents permission)

    • pull-requests (to create the pull request that will merge in the release)

    • OPTIONAL: packages used to publish to the GitHub Container Registry

  • We create two environment variables simply to reuse them later:

    • GO_VERSION: If I update my go versions I don't want to go and change it everywhere, so this env variable is for standardising the GO_VERSION

    • APP_NAME: This comes in handy when I want to push to dockerhub and create the binaries with proper naming! We also use it to name the steps and jobs so that they don't look like 'Linting project-name' rather than linting.

  • We create 3 jobs:

    • lint:

      • We run actions/checkout

      • Setup Go with actions/setup-go, with our ENV variable of GO_VERSION replace this with your programming language

      • We install modules by running go mod download and go mod verify

      • We run go vet ./... to test the app. Replace with your test command.

    • build:

      • We duplicate the lint, rename lint to build and replace go vet ./... with the build script

    • test:

      • We duplicate the lint, rename lint to test and replace go vet ./... with the go test -v ./...

Store the previous version to iterate only forwards

Let's create a file called package.yaml inside .github with one property called version. If you are using Node.Js then don't do it (we will use package.json instead).

Figure out how I want to bump the version

There is a specification called Conventional Commits for making commit messages both human-readable and machine-readable. The commit message is:

<type>[optional scope]: <description>

[optional body]

[optional footer(s)]

Inside 1.2.11 as the version of a software:

  • 1 is for major releases, only used when breaking changes are introduced

  • 2 is for

The important thing is <type> here, if the type is one of:

  • feat: Feature enhancement / Minor release, if the previous version is 0.2.0 it becomes 0.3.0

  • fix: Bug Fix / Patch release, if the previous version is 0.2.1, it bumps to 0.2.2

FYI, if you get to 0.9.0 the next release will be 0.10.0 and not 1.0.0. But then how do we get to 1.0.0?

We can make a commit like feat!: breaking change to push the version to 1.0.0 or you can also do:

<type>[optional scope]: <description>

BREAKING CHANGE: update description

[optional footer(s)]
💡
FYI, you should only do a 'major' release when you make a change that is big enough to make previous ways of using it not work anymore.

So now, we can use the tooling for conventional-commits to bump the version and showcase the changes.

Showcase all the commits in the release

We will use the TriPSs/conventional-changelog-action action for this:

  changelog:
    name: Changelog
    needs:
      - lint
      - build
      - test
    if: github.event_name != 'pull_request'
    runs-on: ubuntu-latest

    outputs:
      skipped: ${{ steps.changelog.outputs.skipped }}
      tag: ${{ steps.changelog.outputs.tag }}
      clean_changelog: ${{ steps.changelog.outputs.clean_changelog }}
      version: ${{ steps.changelog.outputs.version }}

    env:
      PR_BRANCH: release-ci-${{ github.sha }}

    steps:
      - uses: actions/checkout@b4ffde65f46336ab88eb53be808477a3936bae11 # v4
      - name: Create Branch
        run: |
          git checkout -b ${{ env.PR_BRANCH }}

      - name: Create Changelog
        uses: TriPSs/conventional-changelog-action@dd734f74fce61a6e02f821ee1b5930bc79a23534 # v5
        id: changelog
        with:
          github-token: ${{ github.token }}
          git-user-name: "github-actions[bot]"
          git-user-email: "github-actions[bot]@users.noreply.github.com"
          git-branch: ${{ env.PR_BRANCH }}
          skip-git-pull: true
          output-file: false
          version-file: .github/package.yaml
          create-summary: true

      - name: Create Changelog PR
        if: steps.changelog.outputs.skipped == 'false'
        run: |
          gh pr create --base main --head ${{ env.PR_BRANCH }} --title 'chore(release): ${{ steps.changelog.outputs.tag }} [skip-ci]' --body '${{ steps.changelog.outputs.clean_changelog }}'
        env:
          GH_TOKEN: ${{ github.token }}

      - name: Approve Changelog PR
        if: steps.changelog.outputs.skipped == 'false'
        run: |
          gh pr review --approve ${{ env.PR_BRANCH }}
        env:
          GH_TOKEN: ${{ secrets.GH_OWNER_TOKEN }}

      - name: Merge Changelog PR
        if: steps.changelog.outputs.skipped == 'false'
        run: |
          gh pr merge --squash --auto --delete-branch ${{ env.PR_BRANCH }}
        env:
          GH_TOKEN: ${{ secrets.GH_OWNER_TOKEN }}

Breaking it down:

  • We have a changelog job that depends on lint, build and test

  • It runs only if the event name is not pull_request

  • We have defined the outputs so that we access them in the further jobs!

  • We declare a PR_BRANCH an environment variable to reuse the PR branch across all the jobs

  • We created the branch for the PR git checkout -b ${{ env.PR_BRANCH }}

  • TriPSs/conventional-changelog-action has all the options specified, you can look at the docs to see what they do!

  • The only important options are version-file which should be package.json for NodeJs Users, and .github/package.yaml (the file we created) for most other users. output-file is for changelog, I don't like having a changelog file because I can just use the GitHub Releases page to replace it.

  • Then we create the PR to update the version gh pr create

  • Finally, we merge it with A SECRET called GH_OWNER_TOKEN

💡
Make sure to add the GH_OWNER_TOKEN with the permissions necessary to merge the PR

This does 3 things:

  • Creates the tag on GitHub

  • Makes the PR to update the version on GitHub

  • Create an automated change log

The rest of the problems in bulk

Now we finally add a release job with softprops/action-gh-release

  release:
    name: Release
    needs: changelog
    if: github.event_name != 'pull_request' && needs.changelog.outputs.skipped == 'false'
    runs-on: ubuntu-latest

    steps:
      - name: Checkout
        uses: actions/checkout@b4ffde65f46336ab88eb53be808477a3936bae11 # v4

      - name: Setup Go
        uses: actions/setup-go@0c52d547c9bc32b1aa3301fd7a9cb496313a4491 # v5
        with:
          go-version: ${{ env.GO_VERSION }}
      - name: Install Dependencies
        run: go mod download
      - name: Verify Dependencies
        run: go mod verify
      - name: Cross-Build ${{ env.APP_NAME }}
        run: |
          chmod +x ./scripts/build.sh
          CROSS_BUILD=true APP_NAME=${{ env.APP_NAME }} VERSION=${{ needs.changelog.outputs.version }} ./scripts/build.sh

      - name: Create Release
        uses: softprops/action-gh-release@de2c0eb89ae2a093876385947365aca7b0e5f844 # v1
        with:
          token: ${{ secrets.GH_OWNER_TOKEN }}
          tag_name: ${{ needs.changelog.outputs.tag }}
          prerelease: false
          draft: false
          files: bin/*
          generate_release_notes: true
          name: ${{ needs.changelog.outputs.tag }}
          body: |
            <details>
              <summary>🤖 Autogenerated Conventional Changelog</summary>

            ${{ needs.changelog.outputs.clean_changelog }}
            </details>

Breaking down what we've done here:

  • We only execute this job changelog.outputs.skipped is not false

  • We set up to repeat all the things we did during build

  • softprops/action-gh-release is being used to create the release on GitHub

    • We tell it the tag we get from the changelog job

    • generate_release_notes is set to true to generate the GitHub-style release notes + it creates those cool contributor shoutouts

    • files tells it which files to upload with the release

    • body uses the changelog from the changelog step

Let's look at the progress

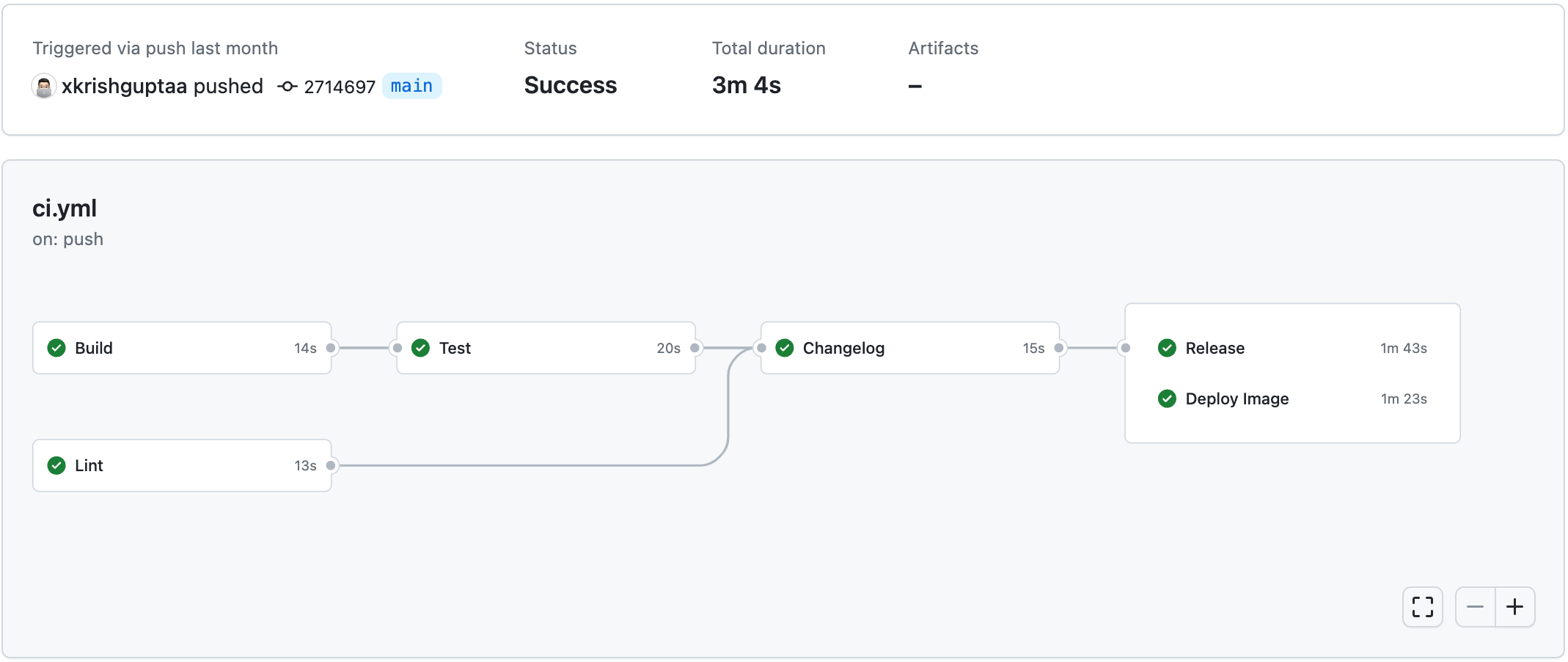

This is the workflow we have right now. It builds, tests, figures out what release to make and makes a release on GitHub.

name: CI

on:
  push:
    branches:
      - main
  pull_request:

permissions:
  contents: write
  packages: write
  pull-requests: write

env:
  GO_VERSION: 1.21.3
  APP_NAME: go-todo-api

jobs:
  lint:
    name: Lint
    runs-on: ubuntu-latest

    steps:
      - name: Checkout
        uses: actions/checkout@b4ffde65f46336ab88eb53be808477a3936bae11 # v4
      - name: Setup Go
        uses: actions/setup-go@0c52d547c9bc32b1aa3301fd7a9cb496313a4491 # v5
        with:
          go-version: ${{ env.GO_VERSION }}
      - name: Install Dependencies
        run: go mod download
      - name: Verify Dependencies
        run: go mod verify
      - name: Lint ${{ env.APP_NAME }}
        run: go vet ./...

  build:
    name: Build
    runs-on: ubuntu-latest

    steps:
      - name: Checkout
        uses: actions/checkout@b4ffde65f46336ab88eb53be808477a3936bae11 # v4
      - name: Setup Go
        uses: actions/setup-go@0c52d547c9bc32b1aa3301fd7a9cb496313a4491 # v5
        with:
          go-version: ${{ env.GO_VERSION }}
      - name: Install Dependencies
        run: go mod download
      - name: Verify Dependencies
        run: go mod verify
      - name: Build ${{ env.APP_NAME }}
        run: |
          chmod +x ./scripts/build.sh
          ./scripts/build.sh

  test:
    name: Test
    needs: build
    runs-on: ubuntu-latest

    steps:
      - name: Checkout
        uses: actions/checkout@b4ffde65f46336ab88eb53be808477a3936bae11 # v4
      - name: Setup Go
        uses: actions/setup-go@0c52d547c9bc32b1aa3301fd7a9cb496313a4491 # v5
        with:
          go-version: ${{ env.GO_VERSION }}
      - name: "Warning: No test cases"
        run: echo "Reminder to create test cases"
      - name: Install Dependencies
        run: go mod download
      - name: Verify Dependencies
        run: go mod verify
      - name: Test ${{ env.APP_NAME }}
        run: go test -v ./...

  changelog:
    name: Changelog
    needs:
      - lint
      - build
      - test
    if: github.event_name != 'pull_request'
    runs-on: ubuntu-latest

    outputs:
      skipped: ${{ steps.changelog.outputs.skipped }}
      tag: ${{ steps.changelog.outputs.tag }}
      clean_changelog: ${{ steps.changelog.outputs.clean_changelog }}
      version: ${{ steps.changelog.outputs.version }}

    env:
      PR_BRANCH: release-ci-${{ github.sha }}

    steps:
      - uses: actions/checkout@b4ffde65f46336ab88eb53be808477a3936bae11 # v4
      - name: Create Branch
        run: |
          git checkout -b ${{ env.PR_BRANCH }}

      - name: Create Changelog
        uses: TriPSs/conventional-changelog-action@dd734f74fce61a6e02f821ee1b5930bc79a23534 # v5
        id: changelog
        with:
          github-token: ${{ github.token }}
          git-user-name: "github-actions[bot]"
          git-user-email: "github-actions[bot]@users.noreply.github.com"
          git-branch: ${{ env.PR_BRANCH }}
          skip-git-pull: true
          output-file: false
          version-file: .github/package.yaml
          create-summary: true

      - name: Create Changelog PR
        if: steps.changelog.outputs.skipped == 'false'
        run: |
          gh pr create --base main --head ${{ env.PR_BRANCH }} --title 'chore(release): ${{ steps.changelog.outputs.tag }} [skip-ci]' --body '${{ steps.changelog.outputs.clean_changelog }}'
        env:
          GH_TOKEN: ${{ github.token }}

      - name: Approve Changelog PR
        if: steps.changelog.outputs.skipped == 'false'
        run: |
          gh pr review --approve ${{ env.PR_BRANCH }}
        env:
          GH_TOKEN: ${{ secrets.GH_OWNER_TOKEN }}

      - name: Merge Changelog PR
        if: steps.changelog.outputs.skipped == 'false'
        run: |
          gh pr merge --squash --auto --delete-branch ${{ env.PR_BRANCH }}
        env:
          GH_TOKEN: ${{ secrets.GH_OWNER_TOKEN }}

  release:
    name: Release
    needs: changelog
    if: github.event_name != 'pull_request' && needs.changelog.outputs.skipped == 'false'
    runs-on: ubuntu-latest

    steps:
      - name: Checkout
        uses: actions/checkout@b4ffde65f46336ab88eb53be808477a3936bae11 # v4

      - name: Setup Go
        uses: actions/setup-go@0c52d547c9bc32b1aa3301fd7a9cb496313a4491 # v5
        with:
          go-version: ${{ env.GO_VERSION }}
      - name: Install Dependencies
        run: go mod download
      - name: Verify Dependencies
        run: go mod verify
      - name: Cross-Build ${{ env.APP_NAME }}
        run: |
          chmod +x ./scripts/build.sh
          CROSS_BUILD=true APP_NAME=${{ env.APP_NAME }} VERSION=${{ needs.changelog.outputs.version }} ./scripts/build.sh

      - name: Create Release
        uses: softprops/action-gh-release@de2c0eb89ae2a093876385947365aca7b0e5f844 # v1
        with:
          token: ${{ secrets.GH_OWNER_TOKEN }}
          tag_name: ${{ needs.changelog.outputs.tag }}
          prerelease: false
          draft: false
          files: bin/*
          generate_release_notes: true
          name: ${{ needs.changelog.outputs.tag }}
          body: |
            <details>
              <summary>🤖 Autogenerated Conventional Changelog</summary>

            ${{ needs.changelog.outputs.clean_changelog }}
            </details>

Now we have an awesome release automation that releases every single time we push to GitHub 🚀

Bonus: Publishing to DockerHub & GHCR

If you have a Dockerfile, let's build an image and push it to DockerHub & GHCR.

  deploy:
    name: Deploy Image
    needs: changelog
    if: github.event_name != 'pull_request' && needs.changelog.outputs.skipped == 'false'
    runs-on: ubuntu-latest

    steps:
      - name: Checkout
        uses: actions/checkout@b4ffde65f46336ab88eb53be808477a3936bae11 # v4

      - name: Login docker.io
        uses: docker/login-action@343f7c4344506bcbf9b4de18042ae17996df046d # v3
        with:
          registry: docker.io
          username: ${{ secrets.DOCKER_USERNAME }}
          password: ${{ secrets.DOCKER_PASSWORD }}

      - name: Login ghcr.io
        uses: docker/login-action@343f7c4344506bcbf9b4de18042ae17996df046d # v3
        with:
          registry: ghcr.io
          username: ${{ github.repository_owner }}
          password: ${{ secrets.GH_OWNER_TOKEN }}

      - name: Setup Docker Metadata
        uses: docker/metadata-action@dbef88086f6cef02e264edb7dbf63250c17cef6c # v5
        id: meta
        with:
          images: |
            docker.io/${{ secrets.DOCKER_USERNAME }}/${{ env.APP_NAME }}
            ghcr.io/${{ github.repository_owner }}/${{ env.APP_NAME }}
          tags: |
            latest
            ${{ needs.changelog.outputs.version }}
            ${{ github.sha }}

      - name: Build and Push Docker Image
        uses: docker/build-push-action@4a13e500e55cf31b7a5d59a38ab2040ab0f42f56 # v5
        with:
          context: .
          push: true
          tags: ${{ steps.meta.outputs.tags }}
          labels: ${{ steps.meta.outputs.labels }}

We created a deploy job in the workflow, here is what it does:

  • Once we have successfully made the release

  • We authenticate to 2 Docker Registries using the official docker/login-action

  • Using docker/metadata-action we set up metadata of the action, including:

    • Image name, we define the image name using APP_NAME variable we declared earlier for both the docker hub and ghcr.

    • We set three tags for each of the images: latest, the version of the release and the SHA of the commit

  • Finally, we build and push to the registries using the docker/build-push-action with the Dockerfile in the root of the repository.

💡
Make sure to create the DOCKER_USERNAME and DOCKER_PASSWORD to push to DockerHub.

Here's the source code for the workflow file, and this is an example run.

Follow Kubesimplify on Hashnode, Twitter and LinkedIn. Join our Discord server to learn with us.

Did you find this article valuable?

Support Kubesimplify by becoming a sponsor. Any amount is appreciated!

GitHubgithub-actionsGitrelease managementrelease notes
